Rat Pecam1/CD31 ELISA Kit (RTFI00178)- High Sensitivity

Product Name:	Rat Pecam1 (Platelet endothelial cell adhesion molecule) ELISA Kit
Product Code:	RTFI00178
Size:	96 Assays
Target:	Rat Pecam1
Alias:	Pecam1
Reactivity:	Rat
Detection Method:	Sandwich ELISA, Double Antibody
Sensitivity:	0.938ng/ml
Range:	1.563-100ng/ml
Storage:	4°C for 6 months
Note:	For Research Use Only

Recovery:

Matrices listed below were spiked with certain level of Rat Pecam1 and the recovery rates were calculated by comparing the measured value to the expected amount of Rat Pecam1 in samples.

Matrix	Recovery range(%)	Average(%)
serum(n=5)	88-100	94
EDTA plasma(n=5)	90-102	96
UFH plasma(n=5)	86-101	93

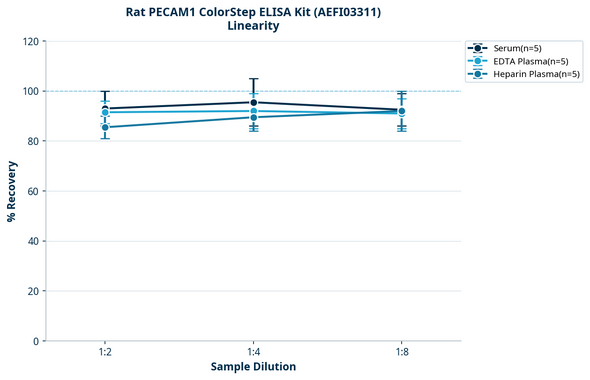

Linearity:

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of Rat Pecam1 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.

Sample	1:2	1:4	1:8
serum(n=5)	86-103%	85-105%	85-101%
EDTA plasma(n=5)	86-91%	83-99%	85-100%
UFH plasma(n=5)	81-94%	80-92%	83-100%

Intra-Assay:

CV <8%

Inter-Assay:

CV <10%

Uniprot:

Q3SWT0

UniProt Protein Function:	PECAM-1: a cell adhesion molecule expressed on platelets and at endothelial cell intercellular junctions. Plays a role in modulation of integrin-mediated cell adhesion, transendothelial migration, angiogenesis, apoptosis, cell migration, negative regulation of immune cell signaling, autoimmunity, macrophage phagocytosis, IgE-mediated anaphylaxis and thrombosis. Undergoes alternative splicing, generating multiple isoforms in vascular beds of various tissues.
UniProt Protein Details:	Protein type:Cell adhesion; Cell development/differentiation; Membrane protein, integral; Motility/polarity/chemotaxis Cellular Component: cell surface; external side of plasma membrane; extracellular space; lipid raft; membrane; plasma membrane; ruffle; smooth muscle contractile fiber Molecular Function:protein phosphatase binding Biological Process: angiogenesis; diapedesis; endothelial cell migration; endothelial cell morphogenesis; negative regulation of actin filament polymerization; negative regulation of peptidyl-tyrosine phosphorylation; phagocytosis; positive regulation of cellular extravasation; positive regulation of leukocyte migration; positive regulation of tyrosine phosphorylation of Stat5 protein; regulation of cell migration; Rho protein signal transduction; wound healing
UniProt Code:	Q3SWT0
NCBI GenInfo Identifier:	84029389
NCBI Gene ID:	29583
NCBI Accession:	Q3SWT0.1
UniProt Secondary Accession:	Q3SWT0,P97635,
UniProt Related Accession:	Q3SWT0
Molecular Weight:	76,189 Da
NCBI Full Name:	Platelet endothelial cell adhesion molecule
NCBI Synonym Full Names:	platelet/endothelial cell adhesion molecule 1
NCBI Official Symbol:	Pecam1
NCBI Official Synonym Symbols:	CD31; Pecam
NCBI Protein Information:	platelet endothelial cell adhesion molecule; PECAM-1
UniProt Protein Name:	Platelet endothelial cell adhesion molecule
UniProt Synonym Protein Names:	CD_antigen: CD31
UniProt Gene Name:	Pecam1
UniProt Entry Name:	PECA1_RAT

Step	Procedure
1.	Set standard, test sample and control (zero) wells on the pre-coated plate respectively, and then, record their positions. It is recommended to measure each standard and sample in duplicate. Wash plate 2 times before adding standard, sample and control (zero) wells!
2.	Aliquot 0.1ml standard solutions into the standard wells.
3.	Add 0.1 ml of Sample / Standard dilution buffer into the control (zero) well.
4.	Add 0.1 ml of properly diluted sample ( Human serum, plasma, tissue homogenates and other biological fluids.) into test sample wells.
5.	Seal the plate with a cover and incubate at 37°C for 90 min.
6.	Remove the cover and discard the plate content, clap the plate on the absorbent filter papers or other absorbent material. Do NOT let the wells completely dry at any time. Wash plate X2.
7.	Add 0.1 ml of Biotin- detection antibody working solution into the above wells (standard, test sample & zero wells). Add the solution at the bottom of each well without touching the side wall.
8.	Seal the plate with a cover and incubate at 37°C for 60 min.
9.	Remove the cover, and wash plate 3 times with Wash buffer. Let wash buffer rest in wells for 1 min between each wash.
10.	Add 0.1 ml of SABC working solution into each well, cover the plate and incubate at 37°C for 30 min.
11.	Remove the cover and wash plate 5 times with Wash buffer, and each time let the wash buffer stay in the wells for 1-2 min.
12.	Add 90 µL of TMB substrate into each well, cover the plate and incubate at 37°C in dark within 10-20 min. (Note: This incubation time is for reference use only, the optimal time should be determined by end user.) And the shades of blue can be seen in the first 3-4 wells (with most concentrated standard solutions), the other wells show no obvious color.
13.	Add 50 µL of Stop solution into each well and mix thoroughly. The color changes into yellow immediately.
14.	Read the O.D. absorbance at 450 nm in a microplate reader immediately after adding the stop solution.

When carrying out an ELISA assay it is important to prepare your samples in order to achieve the best possible results. Below we have a list of procedures for the preparation of samples for different sample types.

Sample Type	Protocol
Serum:	If using serum separator tubes, allow samples to clot for 30 minutes at room temperature. Centrifuge for 10 minutes at 1,000x g. Collect the serum fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. If serum separator tubes are not being used, allow samples to clotovernight at 2-8°C. Centrifuge for 10 minutes at 1,000x g. Removeserum and assay promptly or aliquot and store the samples at-80°C. Avoid multiple freeze-thaw cycles.
Plasma:	Collect plasma using EDTA or heparin as an anti-coagulant. Centrifuge samples at 4°C for 15 mins at 1000 × g within 30 mins of collection. Collect the plasma fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles.Note: Over haemolysed samples are not suitable for use with this kit.
Urine & Cerebrospinal Fluid:	Collect the urine (mid-stream) in a sterile container, centrifuge for 20 mins at 2000-3000 rpm. Remove supernatant and assay immediately. If any precipitation is detected, repeat the centrifugation step. A similar protocol can be used for cerebrospinal fluid.
Cell Culture Supernatant:	Collect the cell culture media by pipette, followed by centrifugation at 4°C for 20 mins at 1500 rpm. Collect the clear supernatant and assay immediately.
Cell Lysates:	Solubilize cells in lysis buffer and allow to sit on ice for 30 minutes. Centrifuge tubes at 14,000 x g for 5 minutes to remove insoluble material. Aliquot the supernatant into a new tube and discard the remaining whole cell extract. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20°C.
Tissue Homogenates:	The preparation of tissue homogenates will vary depending upon tissue type. Rinse tissue with 1X PBS to remove excess blood & homogenizein 20ml of 1X PBS (including protease inhibitors) and store overnight at ≤ -20°C. Two freeze-thaw cycles are required to break the cell membranes. To further disrupt the cell membranes you can sonicate the samples. Centrifuge homogenates for 5 mins at 5000xg. Remove the supernatant and assay immediately or aliquot and store at -20°C or-80°C.
Tissue Lysates:	Rinse tissue with PBS, cut into 1-2 mm pieces, and homogenize with a tissue homogenizer in PBS. Add an equal volume of RIPA buffer containing protease inhibitors and lyse tissues at room temperature for 30 minutes with gentle agitation. Centrifuge to remove debris. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C.
Breast Milk:	Collect milk samples and centrifuge at 10,000 x g for 60 min at 4°C. Aliquot the supernatant and assay. For long term use, store samples at -80°C. Minimize freeze/thaw cycles.
