Human MHCC/HLA-C (Major Histocompatibility Complex Class I C) ELISA Kit (HUES03206)



ELISA Kit Technical ManualMSDS

Human MHCC/HLA-C (Major Histocompatibility Complex Class I C) ELISA Kit

This ELISA kit uses Sandwich-ELISA as the method. The micro ELISA plate provided in this kit has been pre-coated with an antibody specific to Human MHCC/HLA-C . Standards or samples are added to the appropriate micro ELISA plate wells and combined with the specific antibody. Then a biotinylated detection antibody specific for Human MHCC/HLA-C and Avidin-Horseradish Peroxidase (HRP) conjugate are added to each micro plate well successively and incubated. Free components are washed away. The substrate solution is added to each well. Only those wells that contain Human MHCC/HLA-C, biotinylated detection antibody and Avidin-HRP conjugate will appear blue in color. The enzyme-substrate reaction is terminated by adding Stop Solution and the color turns yellow. The optical density (OD) is measured spectrophotometrically at a wavelength of 450 nm ± 2 nm. The OD value is proportional to the concentration of Human MHCC/HLA-C. The concentration of Human MHCC/HLA-C in samples can be calculated by comparing the OD of the samples to the standard curve.

Assay typeSandwich
Assay time4.5h
Detection MethodColormetric
Detection Range0.31-20 ng/mL
Sensitivity0.19 ng/mL
Sample Volume Required Per Well100uL
Sample TypeSerum, plasma and other biological fluids


This kit recognizes Human MHCC/HLA-C in samples. No significant cross-reactivity or interference between Human MHCC/HLA-C and analogues was observed.

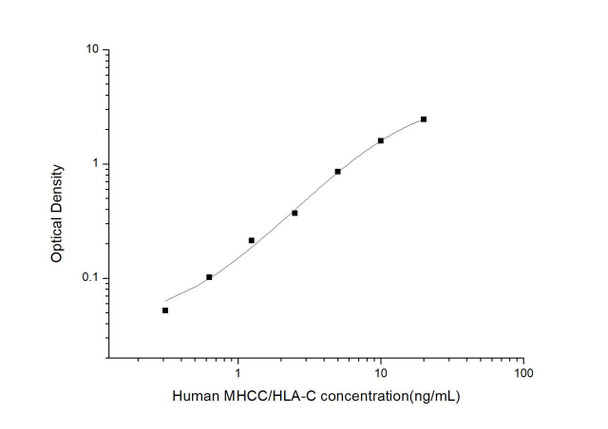

Typical Data

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, washing technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data is provided below for reference only.

O.D Average Corrected


Intra-assay Precision (Precision within an assay): 3 samples with low, mid range and high level Human MHCC/HLA-C were tested 20 times on one plate, respectively.

Inter-assay Precision (Precision between assays): 3 samples with low, mid range and high level Human MHCC/HLA-C were tested on 3 different plates, 20 replicates in each plate.

Intra-assay Precision Inter-assay Precision
Mean (ng/mL)0.992.228.180.942.447.67
Standard deviation0.060.100.350.050.100.38
C V (%)6.064.504.285.324.104.95


The recovery of Human MHCC/HLA-C spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.

Sample Type Range (%) Average Recovery (%)
Serum (n=5)87-10093
EDTA plasma (n=5)86-9992
Cell culture media (n=5)87-10193


Samples were spiked with high concentrations of Human MHCC/HLA-C and diluted with Reference Standard & Sample Diluent to produce samples with values within the range of the assay.

Serum (n=5) EDTA plasma (n=5) Cell culture media (n=5)
1:2Range (%)92-10892-10597-110
Average (%)10097102
1:4Range (%)86-10080-9388-100
Average (%)928693
1:8Range (%)91-10586-9783-96
Average (%)989290
1:16Range (%)85-9883-9386-101
Average (%)928893

Kit Components & Storage

An unopened kit can be stored at 4'C for 1 month. If the kit is not used within 1 month, store the items separately according to the following conditions once the kit is received.

Item Specifications Storage
Micro ELISA Plate(Dismountable)8 wells X12 strips-20'C, 6 months
Reference Standard2 vials
Concentrated Biotinylated Detection Ab (100X)1 vial, 120 uL
Concentrated HRP Conjugate (100X)1 vial, 120 uL-20'C(shading light), 6 months
Reference Standard & Sample Diluent1 vial, 20 mL4'C, 6 months
Biotinylated Detection Ab Diluent1 vial, 14 mL
HRP Conjugate Diluent1 vial, 14 mL
Concentrated Wash Buffer (25X)1 vial, 30 mL
Substrate Reagent1 vial, 10 mL4'C(shading light)
Stop Solution1 vial, 10 mL4'C
Plate Sealer5 pieces
Product Description1 copy
Certificate of Analysis1 copy

Human MHCC/HLA-C (Major Histocompatibility Complex Class I C) ELISA Kit (HUES03206) Assay procedure

    1. Set standard, test sample and control (zero) wells on the pre-coated plate and record theirpositions. It is recommended to measure each standard and sample in duplicate. Note: addall solutions to the bottom of the plate wells while avoiding contact with the well walls. Ensuresolutions do not foam when adding to the wells.
    2. Aliquot 100µl of standard solutions into the standard wells.
    3. Add 100µl of Sample / Standard dilution buffer into the control (zero) well.
    4. Add 100µl of properly diluted sample (serum, plasma, tissue homogenates and otherbiological fluids) into test sample wells.
    5. Cover the plate with the sealer provided in the kit and incubate for 90 min at 37°C.
    6. Aspirate the liquid from each well, do not wash. Immediately add 100µL of BiotinylatedDetection Ab working solution to each well. Cover the plate with a plate seal and gently mix.Incubate for 1 hour at 37°C.
    7. Aspirate or decant the solution from the plate and add 350µL of wash buffer to each welland incubate for 1-2 minutes at room temperature. Aspirate the solution from each well andclap the plate on absorbent filter paper to dry. Repeat this process 3 times. Note: a microplatewasher can be used in this step and other wash steps.
    8. Add 100µL of HRP Conjugate working solution to each well. Cover with a plate seal andincubate for 30 min at 37°C.
    9. Aspirate or decant the solution from each well. Repeat the wash process for five times asconducted in step 7.
    10. Add 90µL of Substrate Reagent to each well. Cover with a new plate seal and incubate forapproximately 15 min at 37°C. Protect the plate from light. Note: the reaction time can beshortened or extended according to the actual color change, but not by more than 30min.
    11. Add 50 µL of Stop Solution to each well. Note: Adding the stop solution should be done inthe same order as the substrate solution.
    12. Determine the optical density (OD value) of each well immediately with a microplate readerset at 450 nm.

Human MHCC/HLA-C (Major Histocompatibility Complex Class I C) ELISA Kit (HUES03206) Protein Information

UniProt Protein Function:HLAC iso7: Involved in the presentation of foreign antigens to the immune system. Belongs to the MHC class I family.
UniProt Protein Details:

Protein type:Membrane protein, integral; Receptor, misc.

Chromosomal Location of Human Ortholog: 6p21.3

Cellular Component: cell surface; early endosome membrane; endoplasmic reticulum; Golgi apparatus; Golgi membrane; MHC class I protein complex; phagocytic vesicle membrane; plasma membrane

Molecular Function:antigen binding; peptide antigen binding

Biological Process: antigen processing and presentation; antigen processing and presentation of exogenous peptide antigen via MHC class I, TAP-dependent; antigen processing and presentation of exogenous peptide antigen via MHC class I, TAP-independent; antigen processing and presentation of peptide antigen via MHC class I; regulation of immune response

NCBI Summary:HLA-C belongs to the HLA class I heavy chain paralogues. This class I molecule is a heterodimer consisting of a heavy chain and a light chain (beta-2 microglobulin). The heavy chain is anchored in the membrane. Class I molecules play a central role in the immune system by presenting peptides derived from endoplasmic reticulum lumen. They are expressed in nearly all cells. The heavy chain is approximately 45 kDa and its gene contains 8 exons. Exon one encodes the leader peptide, exons 2 and 3 encode the alpha1 and alpha2 domain, which both bind the peptide, exon 4 encodes the alpha3 domain, exon 5 encodes the transmembrane region, and exons 6 and 7 encode the cytoplasmic tail. Polymorphisms within exon 2 and exon 3 are responsible for the peptide binding specificity of each class one molecule. Typing for these polymorphisms is routinely done for bone marrow and kidney transplantation. Over one hundred HLA-C alleles have been described [provided by RefSeq, Jul 2008]
UniProt Code:P10321
NCBI GenInfo Identifier:84028168
NCBI Gene ID:3107
NCBI Accession:P10321.3
UniProt Secondary Accession:P10321,O78061, O78083, Q29631, Q29652, Q29867, Q29990 Q95463, Q95603, Q9MY31, Q9TQP9,
UniProt Related Accession:P30499,P30501,P30504,P30505,Q07000,Q29865,Q29960,Q95604,P04222,P30508
Molecular Weight:40,649 Da
NCBI Full Name:HLA class I histocompatibility antigen, Cw-7 alpha chain
NCBI Synonym Full Names:major histocompatibility complex, class I, C
NCBI Official Symbol:HLA-C
NCBI Official Synonym Symbols:MHC; HLAC; HLC-C; D6S204; PSORS1; HLA-JY3
NCBI Protein Information:HLA class I histocompatibility antigen, Cw-1 alpha chain
UniProt Protein Name:HLA class I histocompatibility antigen, Cw-7 alpha chain
UniProt Synonym Protein Names:MHC class I antigen Cw*7
Protein Family:HLA class I histocompatibility antigen
UniProt Gene Name:HLA-C
UniProt Entry Name:1C07_HUMAN
