Description
Mouse HB-EGF (Heparin-binding Epidermal Growth Factor-like Growth Factor) ELISA Kit
The Mouse HB-EGF (Heparin Binding Epidermal Growth Factor Like Growth Factor) ELISA Kit is a valuable tool for detecting levels of HB-EGF in mouse serum, plasma, and cell culture supernatants. This kit offers exceptional sensitivity and specificity, ensuring reliable and consistent results for various research applications.HB-EGF is an important growth factor that plays a critical role in cell proliferation, migration, and differentiation. It is involved in various physiological processes, including wound healing, tissue regeneration, and development.
Additionally, HB-EGF has been implicated in diseases such as cancer, cardiovascular disorders, and inflammatory conditions, making it a key target for therapeutic interventions and biomarker studies.With the Mouse HB-EGF ELISA Kit, researchers can accurately quantify HB-EGF levels in biological samples, facilitating advanced investigations into the molecular mechanisms underlying disease pathogenesis and potential therapeutic strategies. Trust in this kit for precise and reproducible results in your experimental studies.
| Assay type: | Sandwich |
| Format: | 96T |
| Assay time: | 4.5h |
| Reactivity: | Mouse |
| Detection Method: | Colormetric |
| Detection Range: | 15.63-1000 pg/mL |
| Sensitivity: | 9.38 pg/mL |
| Sample Volume Required Per Well: | 100µL |
| Sample Type: | Serum, plasma and other biological fluids |
| Specificity: | This kit recognizes Mouse HB-EGF in samples. No significant cross-reactivity or interference between Mouse HB-EGF and analogues was observed. |
This ELISA kit uses Sandwich-ELISA as the method. The micro ELISA plate provided in this kit has been pre-coated with an antibody specific to Mouse HB-EGF. Standards or samples are added to the appropriate micro ELISA plate wells and combined with the specific antibody. Then a biotinylated detection antibody specific for Mouse HB-EGF and Avidin-Horseradish Peroxidase (HRP) conjugate are added to each micro plate well successively and incubated. Free components are washed away. The substrate solution is added to each well. Only those wells that contain Mouse HB-EGF, biotinylated detection antibody and Avidin-HRP conjugate will appear blue in color. The enzyme-substrate reaction is terminated by adding Stop Solution and the color turns yellow. The optical density (OD) is measured spectrophotometrically at a wavelength of 450 nm ± 2 nm. The OD value is proportional to the concentration of Mouse HB-EGF. The concentration of Mouse HB-EGF in samples can be calculated by comparing the OD of the samples to the standard curve.
| UniProt Protein Function: | HBEGF: Growth factor that mediates its effects via EGFR, ERBB2 and ERBB4. Required for normal cardiac valve formation and normal heart function. Promotes smooth muscle cell proliferation. May be involved in macrophage-mediated cellular proliferation. It is mitogenic for fibroblasts, but not endothelial cells. It is able to bind EGF receptor/EGFR with higher affinity than EGF itself and is a far more potent mitogen for smooth muscle cells than EGF. Also acts as a diphtheria toxin receptor. |
| UniProt Protein Details: | Protein type:Cell surface; Membrane protein, integral Cellular Component: extracellular space; cell surface; membrane; integral to plasma membrane; plasma membrane; integral to membrane; extracellular region Molecular Function:heparin binding; growth factor activity; epidermal growth factor receptor binding Biological Process: epidermal growth factor receptor signaling pathway; positive regulation of keratinocyte migration; positive regulation of protein kinase B signaling cascade; cell migration; positive regulation of smooth muscle cell proliferation; negative regulation of elastin biosynthetic process; angiogenesis; blastocyst growth; positive regulation of cell growth; regulation of heart contraction; positive regulation of cell migration; wound healing, spreading of epidermal cells |
| UniProt Code: | Q06186 |
| NCBI GenInfo Identifier: | 1236400 |
| NCBI Gene ID: | 15200 |
| NCBI Accession: | AAC52617. 1 |
| UniProt Related Accession: | Q06186 |
| Molecular Weight: | 22,808 Da |
| NCBI Full Name: | heparin-binding epidermal growth factor-like growth factor |
| NCBI Synonym Full Names: | heparin-binding EGF-like growth factor |
| NCBI Official Symbol: | Hbegf |
| NCBI Official Synonym Symbols: | Dtr; Dts; Hegfl; AW047313 |
| NCBI Protein Information: | proheparin-binding EGF-like growth factor; diphtheria toxin receptor; heparin binding epidermal growth factor-like growth factor |
| UniProt Protein Name: | Proheparin-binding EGF-like growth factor |
| Protein Family: | Proheparin-binding EGF-like growth factor |
| UniProt Gene Name: | Hbegf |
| UniProt Entry Name: | HBEGF_MOUSE |

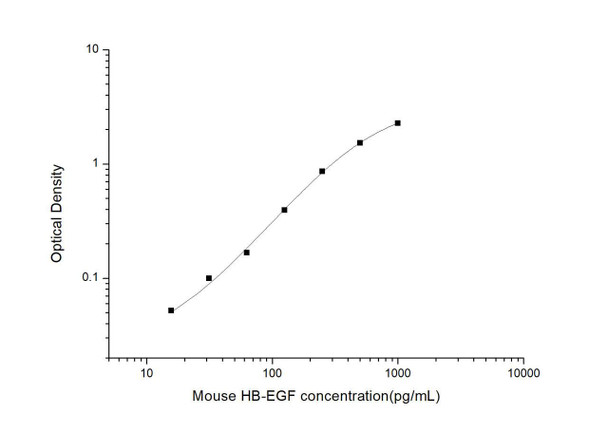

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e. g. operator, pipetting technique, washing technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data is provided below for reference only.
| Concentration (pg/mL) | O.D | Average | Corrected |
| 1000 | 2.352 2.356 | 2.354 | 2.276 |
| 500 | 1.594 1.606 | 1.6 | 1.522 |
| 250 | 0.946 0.928 | 0.937 | 0.859 |
| 125 | 0.455 0.489 | 0.472 | 0.394 |
| 62.5 | 0.259 0.231 | 0.245 | 0.167 |
| 31.25 | 0.189 0.167 | 0.178 | 0.1 |
| 15.63 | 0.126 0.134 | 0.13 | 0.052 |
| 0 | 0.072 0.084 | 0.078 | -- |
Precision
Intra-assay Precision (Precision within an assay): 3 samples with low, mid range and high level Mouse HB-EGF were tested 20 times on one plate, respectively.
Inter-assay Precision (Precision between assays): 3 samples with low, mid range and high level Mouse HB-EGF were tested on 3 different plates, 20 replicates in each plate.
| Intra-assay Precision | Inter-assay Precision | |||||
| Sample | 1 | 2 | 3 | 1 | 2 | 3 |
| n | 20 | 20 | 20 | 20 | 20 | 20 |
| Mean (pg/mL) | 48.20 | 140.23 | 497.71 | 50.58 | 147.74 | 489.20 |
| Standard deviation | 3.23 | 6.07 | 22.25 | 2.92 | 6.99 | 21.28 |
| C V (%) | 6.70 | 4.33 | 4.47 | 5.77 | 4.73 | 4.35 |
Recovery
The recovery of Mouse HB-EGF spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.
| Sample Type | Range (%) | Average Recovery (%) |
| Serum (n=5) | 91-105 | 97 |
| EDTA plasma (n=5) | 88-102 | 94 |
| Cell culture media (n=5) | 90-103 | 96 |
Linearity
Samples were spiked with high concentrations of Mouse HB-EGF and diluted with Reference Standard & Sample Diluent to produce samples with values within the range of the assay.
| Serum (n=5) | EDTA plasma (n=5) | Cell culture media (n=5) | ||
| 1:2 | Range (%) | 95-107 | 98-115 | 96-112 |
| Average (%) | 100 | 105 | 103 | |
| 1:4 | Range (%) | 92-104 | 85-98 | 85-96 |
| Average (%) | 99 | 91 | 90 | |
| 1:8 | Range (%) | 91-104 | 82-97 | 85-98 |
| Average (%) | 97 | 89 | 90 | |
| 1:16 | Range (%) | 90-102 | 82-94 | 81-94 |
| Average (%) | 95 | 86 | 88 |
An unopened kit can be stored at 4°C for 1 month. If the kit is not used within 1 month, store the items separately according to the following conditions once the kit is received.
| Item | Specifications | Storage |
| Micro ELISA Plate(Dismountable) | 8 wells ×12 strips | -20°C, 6 months |
| Reference Standard | 2 vials | |
| Concentrated Biotinylated Detection Ab (100×) | 1 vial, 120 µL | |
| Concentrated HRP Conjugate (100×) | 1 vial, 120 µL | -20°C(shading light), 6 months |
| Reference Standard & Sample Diluent | 1 vial, 20 mL | 4°C, 6 months |
| Biotinylated Detection Ab Diluent | 1 vial, 14 mL | |
| HRP Conjugate Diluent | 1 vial, 14 mL | |
| Concentrated Wash Buffer (25×) | 1 vial, 30 mL | |
| Substrate Reagent | 1 vial, 10 mL | 4°C(shading light) |
| Stop Solution | 1 vial, 10 mL | 4°C |
| Plate Sealer | 5 pieces | |
| Product Description | 1 copy | |
| Certificate of Analysis | 1 copy |
- Set standard, test sample and control (zero) wells on the pre-coated plate and record theirpositions. It is recommended to measure each standard and sample in duplicate. Note: addall solutions to the bottom of the plate wells while avoiding contact with the well walls. Ensuresolutions do not foam when adding to the wells.
- Aliquot 100µl of standard solutions into the standard wells.
- Add 100µl of Sample / Standard dilution buffer into the control (zero) well.
- Add 100µl of properly diluted sample (serum, plasma, tissue homogenates and otherbiological fluids) into test sample wells.
- Cover the plate with the sealer provided in the kit and incubate for 90 min at 37°C.
- Aspirate the liquid from each well, do not wash. Immediately add 100µL of BiotinylatedDetection Ab working solution to each well. Cover the plate with a plate seal and gently mix. Incubate for 1 hour at 37°C.
- Aspirate or decant the solution from the plate and add 350µL of wash buffer to each welland incubate for 1-2 minutes at room temperature. Aspirate the solution from each well andclap the plate on absorbent filter paper to dry. Repeat this process 3 times. Note: a microplatewasher can be used in this step and other wash steps.
- Add 100µL of HRP Conjugate working solution to each well. Cover with a plate seal andincubate for 30 min at 37°C.
- Aspirate or decant the solution from each well. Repeat the wash process for five times asconducted in step 7.
- Add 90µL of Substrate Reagent to each well. Cover with a new plate seal and incubate forapproximately 15 min at 37°C. Protect the plate from light. Note: the reaction time can beshortened or extended according to the actual color change, but not by more than 30min.
- Add 50 µL of Stop Solution to each well. Note: Adding the stop solution should be done inthe same order as the substrate solution.
- Determine the optical density (OD value) of each well immediately with a microplate readerset at 450 nm.
