Human GPC1 (Glypican 1) ELISA Kit (HUES02700)

(No reviews yet) Write a Review
SKU:
HUES02700
€539

Description

ELISA Kit Technical ManualMSDS

Human GPC1 (Glypican 1) ELISA Kit

This ELISA kit uses Sandwich-ELISA as the method. The micro ELISA plate provided in this kit has been pre-coated with an antibody specific to Human GPC1 . Standards or samples are added to the appropriate micro ELISA plate wells and combined with the specific antibody. Then a biotinylated detection antibody specific for Human GPC1 and Avidin-Horseradish Peroxidase (HRP) conjugate are added to each micro plate well successively and incubated. Free components are washed away. The substrate solution is added to each well. Only those wells that contain Human GPC1, biotinylated detection antibody and Avidin-HRP conjugate will appear blue in color. The enzyme-substrate reaction is terminated by adding Stop Solution and the color turns yellow. The optical density (OD) is measured spectrophotometrically at a wavelength of 450 nm ± 2 nm. The OD value is proportional to the concentration of Human GPC1. The concentration of Human GPC1 in samples can be calculated by comparing the OD of the samples to the standard curve.

Assay typeSandwich
Format96T
Assay time4.5h
ReactivityHuman
Detection MethodColormetric
Detection Range78.13-5000 pg/mL
Sensitivity46.88 pg/mL
Sample Volume Required Per Well100uL
Sample TypeSerum, plasma and other biological fluids

Specificity

This kit recognizes Human GPC1 in samples. No significant cross-reactivity or interference between Human GPC1 and analogues was observed.

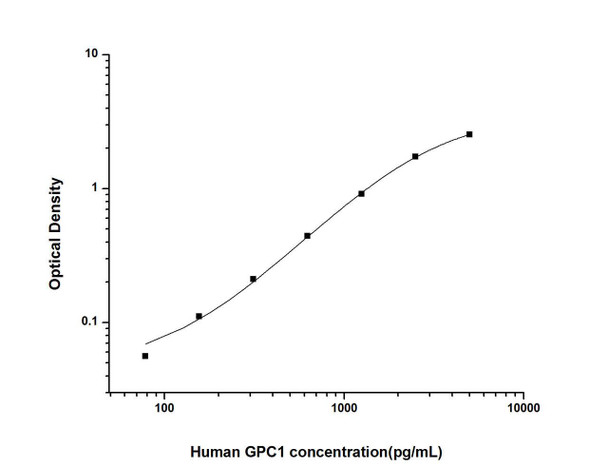

Typical Data

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, washing technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data is provided below for reference only.

Concentration
(pg/mL)
O.D Average Corrected
50002.583
2.595
2.5892.529
25001.758
1.814
1.7861.726
12500.974
0.972
0.9730.913
6250.496
0.512
0.5040.444
312.50.273
0.269
0.2710.211
156.250.182
0.16
0.1710.111
78.130.108
0.124
0.1160.056
00.058
0.062
0.06--

Precision

Intra-assay Precision (Precision within an assay): 3 samples with low, mid range and high level Human GPC1 were tested 20 times on one plate, respectively.

Inter-assay Precision (Precision between assays): 3 samples with low, mid range and high level Human GPC1 were tested on 3 different plates, 20 replicates in each plate.

Intra-assay Precision Inter-assay Precision
Sample123123
n202020202020
Mean (pg/mL)248.58579.662192.50257.76627.832264.30
Standard deviation15.7829.7466.2116.2132.33116.61
C V (%)6.355.133.026.295.155.15

Recovery

The recovery of Human GPC1 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.

Sample Type Range (%) Average Recovery (%)
Serum (n=5)84-9690
EDTA plasma (n=5)88-10495
Cell culture media (n=5)96-111102

Linearity

Samples were spiked with high concentrations of Human GPC1 and diluted with Reference Standard & Sample Diluent to produce samples with values within the range of the assay.

Serum (n=5) EDTA plasma (n=5) Cell culture media (n=5)
1:2Range (%)88-10196-11184-99
Average (%)9310490
1:4Range (%)91-10383-9380-93
Average (%)978787
1:8Range (%)94-10779-9084-98
Average (%)1008590
1:16Range (%)89-9983-9589-101
Average (%)948895

Kit Components & Storage

An unopened kit can be stored at 4'C for 1 month. If the kit is not used within 1 month, store the items separately according to the following conditions once the kit is received.

Item Specifications Storage
Micro ELISA Plate(Dismountable)8 wells X12 strips-20'C, 6 months
Reference Standard2 vials
Concentrated Biotinylated Detection Ab (100X)1 vial, 120 uL
Concentrated HRP Conjugate (100X)1 vial, 120 uL-20'C(shading light), 6 months
Reference Standard & Sample Diluent1 vial, 20 mL4'C, 6 months
Biotinylated Detection Ab Diluent1 vial, 14 mL
HRP Conjugate Diluent1 vial, 14 mL
Concentrated Wash Buffer (25X)1 vial, 30 mL
Substrate Reagent1 vial, 10 mL4'C(shading light)
Stop Solution1 vial, 10 mL4'C
Plate Sealer5 pieces
Product Description1 copy
Certificate of Analysis1 copy

Human GPC1 (Glypican 1) ELISA Kit (HUES02700) Assay procedure

    1. Set standard, test sample and control (zero) wells on the pre-coated plate and record theirpositions. It is recommended to measure each standard and sample in duplicate. Note: addall solutions to the bottom of the plate wells while avoiding contact with the well walls. Ensuresolutions do not foam when adding to the wells.
    2. Aliquot 100µl of standard solutions into the standard wells.
    3. Add 100µl of Sample / Standard dilution buffer into the control (zero) well.
    4. Add 100µl of properly diluted sample (serum, plasma, tissue homogenates and otherbiological fluids) into test sample wells.
    5. Cover the plate with the sealer provided in the kit and incubate for 90 min at 37°C.
    6. Aspirate the liquid from each well, do not wash. Immediately add 100µL of BiotinylatedDetection Ab working solution to each well. Cover the plate with a plate seal and gently mix.Incubate for 1 hour at 37°C.
    7. Aspirate or decant the solution from the plate and add 350µL of wash buffer to each welland incubate for 1-2 minutes at room temperature. Aspirate the solution from each well andclap the plate on absorbent filter paper to dry. Repeat this process 3 times. Note: a microplatewasher can be used in this step and other wash steps.
    8. Add 100µL of HRP Conjugate working solution to each well. Cover with a plate seal andincubate for 30 min at 37°C.
    9. Aspirate or decant the solution from each well. Repeat the wash process for five times asconducted in step 7.
    10. Add 90µL of Substrate Reagent to each well. Cover with a new plate seal and incubate forapproximately 15 min at 37°C. Protect the plate from light. Note: the reaction time can beshortened or extended according to the actual color change, but not by more than 30min.
    11. Add 50 µL of Stop Solution to each well. Note: Adding the stop solution should be done inthe same order as the substrate solution.
    12. Determine the optical density (OD value) of each well immediately with a microplate readerset at 450 nm.

Human GPC1 (Glypican 1) ELISA Kit (HUES02700) Protein Information

UniProt Protein Function:GPC1: Cell surface proteoglycan that bears heparan sulfate. Binds, via the heparan sulfate side chains, alpha-4 (V) collagen and participates in Schwann cell myelination. May act as a catalyst in increasing the rate of conversion of prion protein PRPN(C) to PRNP(Sc) via associating (via the heparan sulfate side chains) with both forms of PRPN, targeting them to lipid rafts and facilitating their interaction. Required for proper skeletal muscle differentiation by sequestering FGF2 in lipid rafts preventing its binding to receptors (FGFRs) and inhibiting the FGF-mediated signaling. Associates (via the heparan sulfate side chains) with fibrillar APP-beta amyloid peptides in primitive and classic amyloid plaques and may be involved in the deposition of these senile plaques in the Alzheimer disease (AD) brain. Misprocessing of GPC1 is found in fibroblasts of patients with Niemann-Pick Type C1 disease. This is due to the defective deaminative degradation of heparan sulfate chains. Belongs to the glypican family.
UniProt Protein Details:

Protein type:Membrane protein, GPI anchor; Motility/polarity/chemotaxis; Extracellular matrix

Chromosomal Location of Human Ortholog: 2q35-q37

Cellular Component: Golgi lumen; integral to plasma membrane; lipid raft; lysosomal lumen; plasma membrane; proteinaceous extracellular matrix

Molecular Function:copper ion binding; fibroblast growth factor binding; laminin binding

Biological Process: axon guidance; glycosaminoglycan biosynthetic process; glycosaminoglycan catabolic process; glycosaminoglycan metabolic process; heparan sulfate proteoglycan catabolic process; myelin formation; negative regulation of fibroblast growth factor receptor signaling pathway; retinoid metabolic process; Schwann cell differentiation

NCBI Summary:Cell surface heparan sulfate proteoglycans are composed of a membrane-associated protein core substituted with a variable number of heparan sulfate chains. Members of the glypican-related integral membrane proteoglycan family (GRIPS) contain a core protein anchored to the cytoplasmic membrane via a glycosyl phosphatidylinositol linkage. These proteins may play a role in the control of cell division and growth regulation. [provided by RefSeq, Jul 2008]
UniProt Code:P35052
NCBI GenInfo Identifier:292495012
NCBI Gene ID:2817
NCBI Accession:P35052.2
UniProt Secondary Accession:P35052,Q53QM4, B3KTD1,
UniProt Related Accession:P35052
Molecular Weight:31,931 Da
NCBI Full Name:Glypican-1
NCBI Synonym Full Names:glypican 1
NCBI Official Symbol:GPC1
NCBI Official Synonym Symbols:glypican
NCBI Protein Information:glypican-1
UniProt Protein Name:Glypican-1
Protein Family:Glypican
UniProt Gene Name:GPC1
UniProt Entry Name:GPC1_HUMAN
